Bandpass filter section

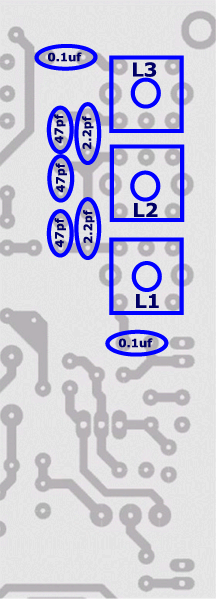

I decided to start with the antenna end and soon I had the following parts placement diagram for the bandpass filter section.

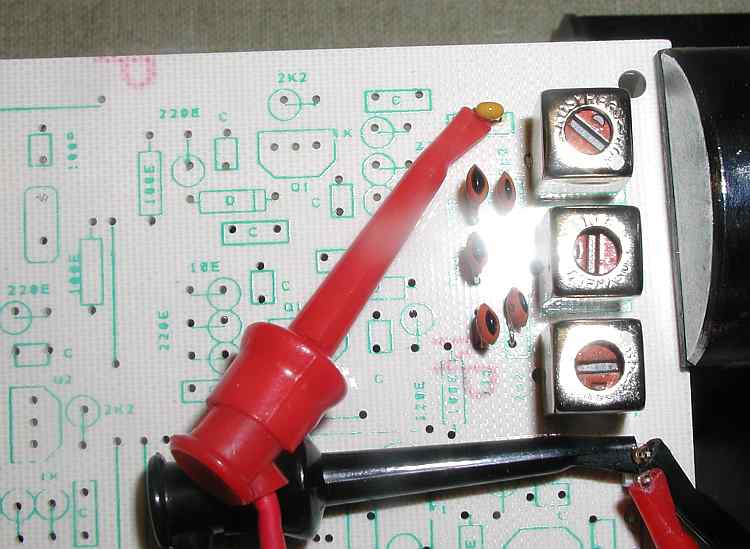

Next I assembled it and connected a sweep generator to the input and my oscilloscope to the output.

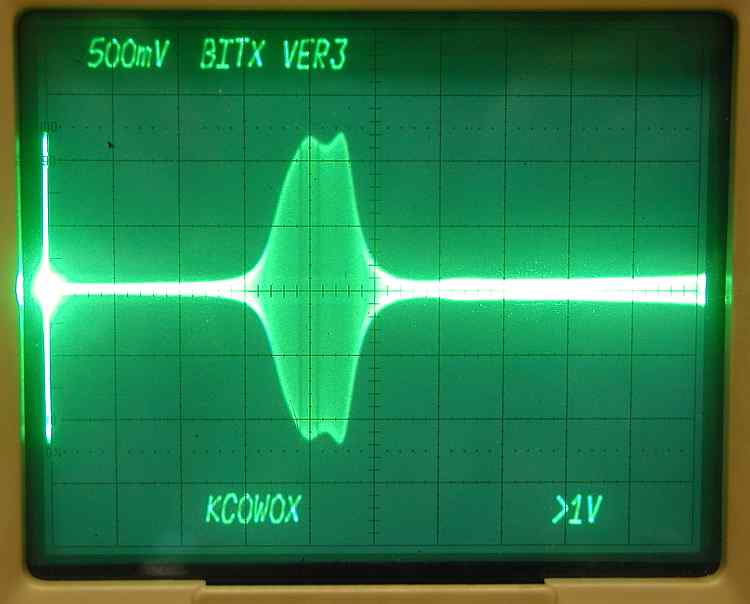

After a little tweaking, this was the final result. The scope is displaying from 10mhz to 20 mhz. Each division is equal to 1mhz.
