Rf Driver Section

Following my plan to work from the antenna back, the next section was the RF driver stage. It was the next logical section of the board to populate also.

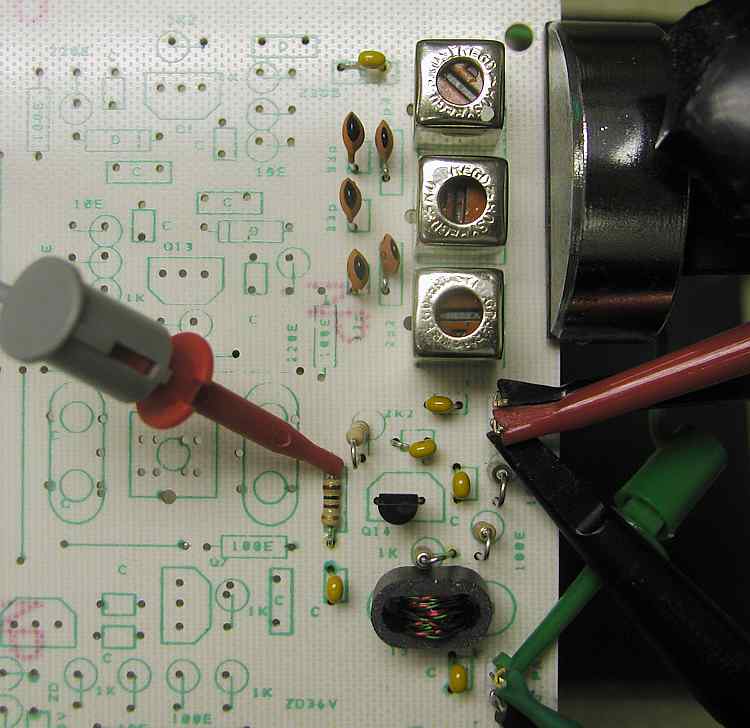

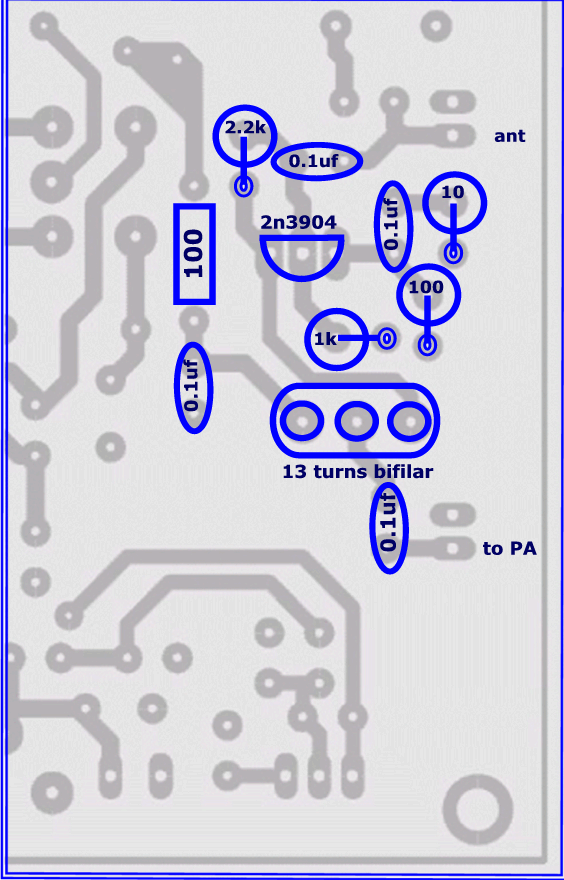

With the drawing done, the next step is assembly, then add a little power, no smoke, that's good, and a signal input.

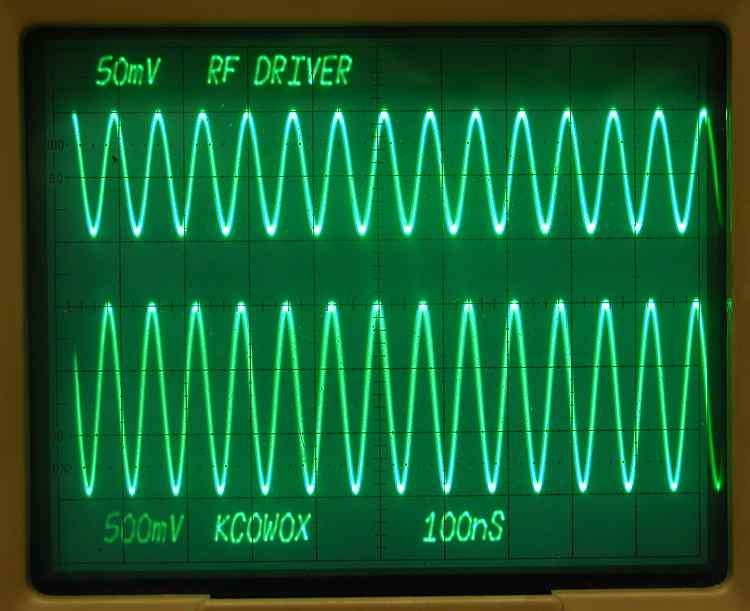

Then on to test with the scope. 100mv 14.2mhz in, 1.5 volts out. That was open circuit and we probably won't get that when we hook to the PA, but for now, thats a gain of 15. On to the next stage!
