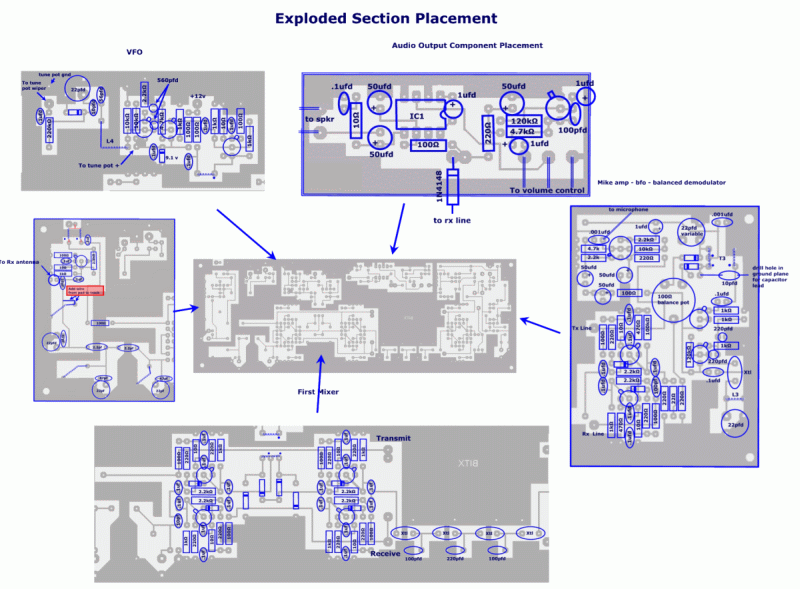

Component Placement Diagrams

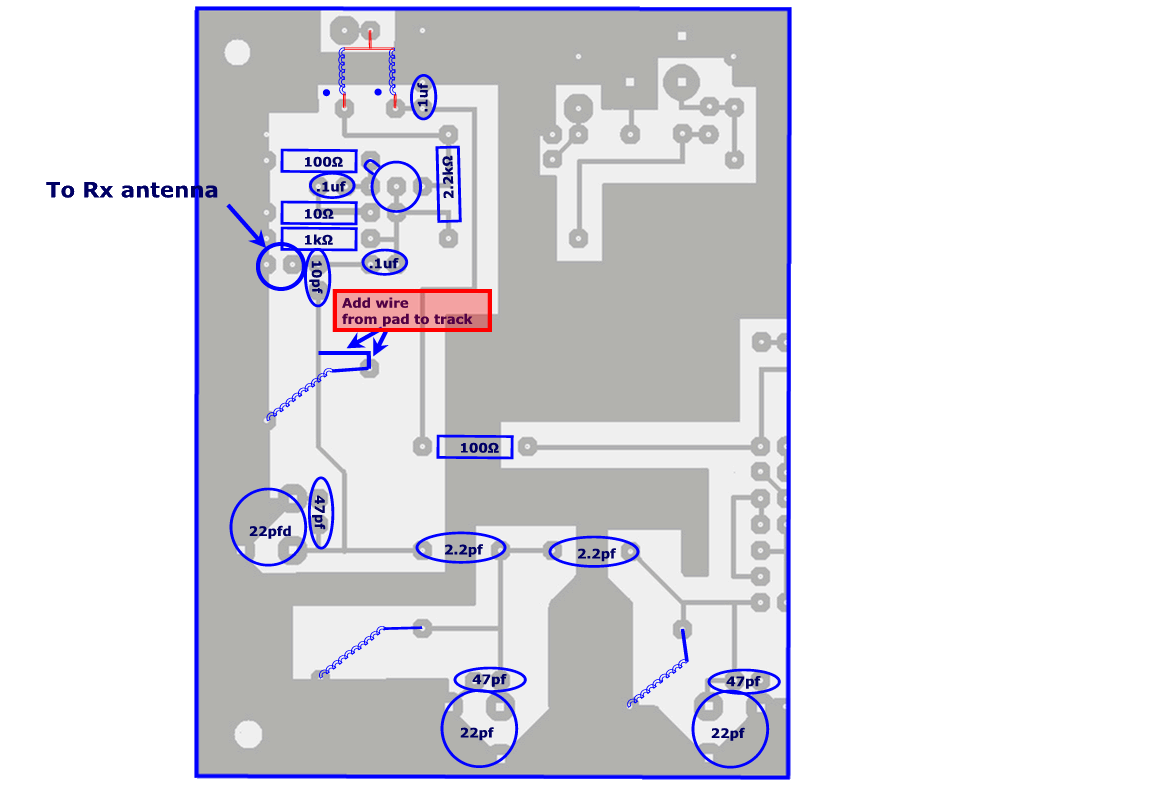

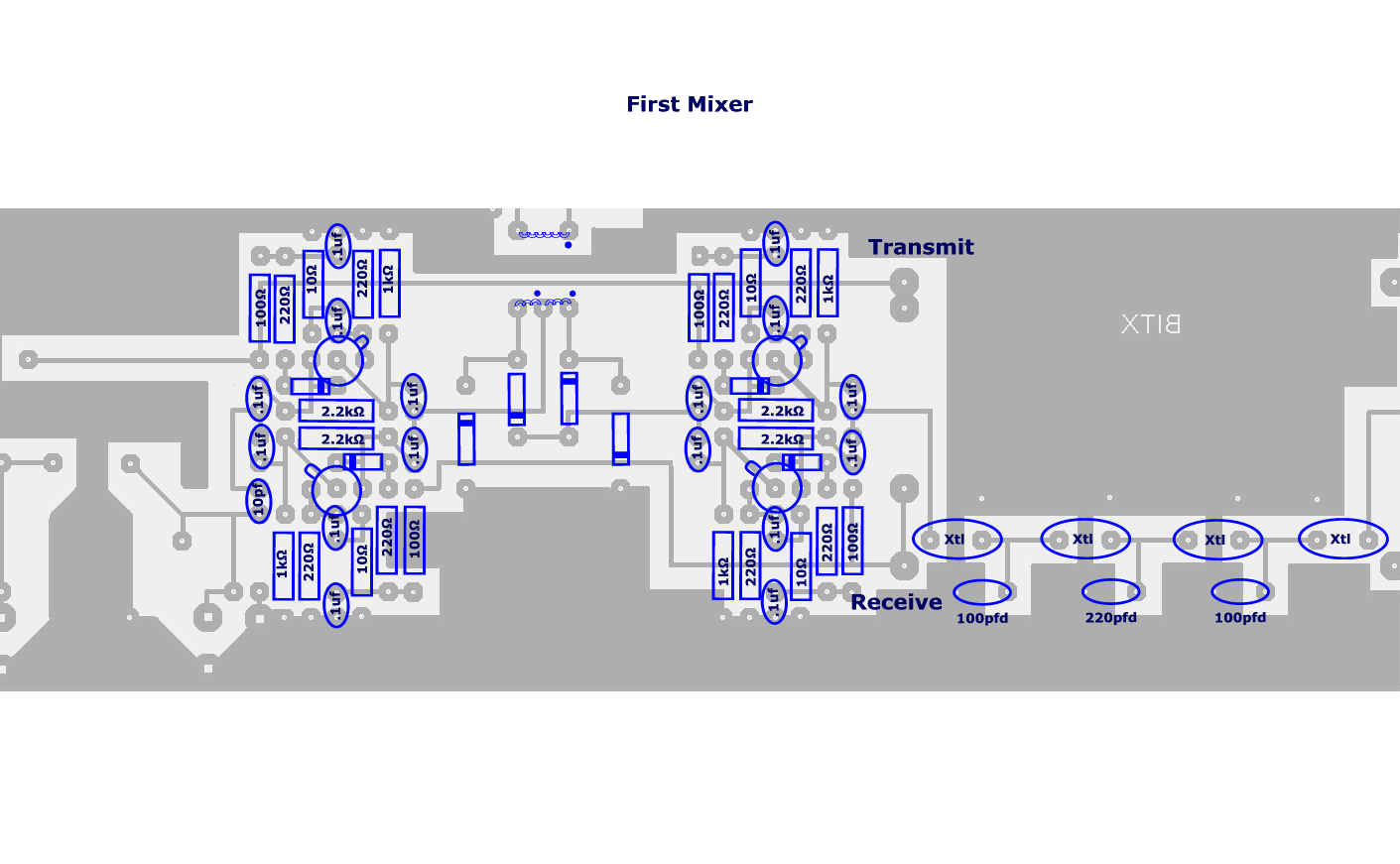

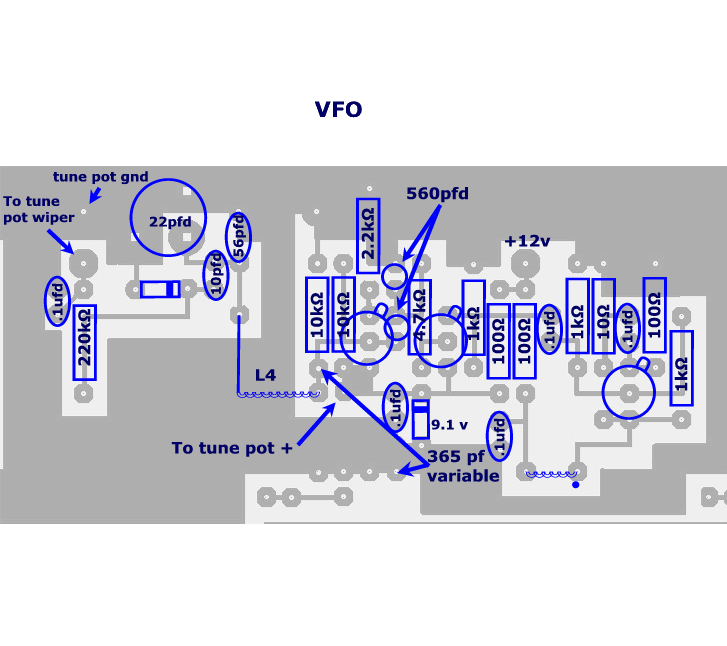

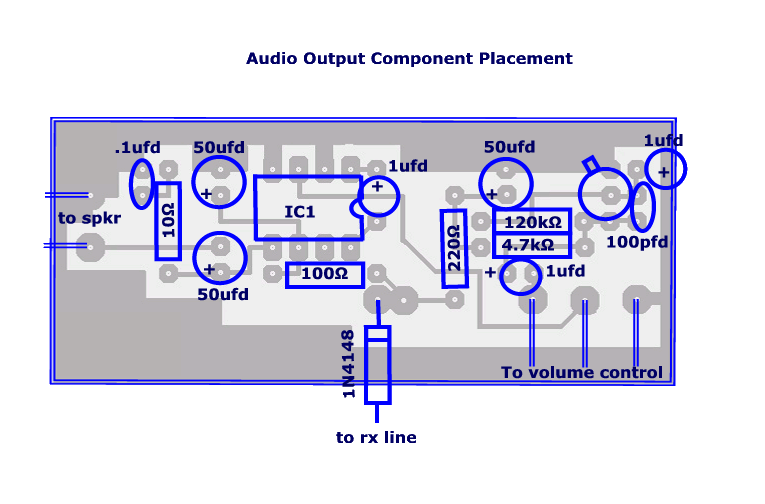

Each of these pictures should be able to be printed.
Important! Balanced
Mod/BFO Drawing
The 100K resistor originally shown at the 7:00 position
from the carrier null pot was incorrect! It should be a 1k.
This has been corrected in the current drawing.
